• · 16.5×11.0mm Max.(L×W), 16.5mm Max. Height.
    · Inductance range: 0.47mH~10mH,Custom values are welcomed.
    · Ideally used as AC common mode noise filter for TV, VCR, Switching power supply, PC&PC related advice, measurement. attenuation and control unit with better characteristics in low frequency band.
    · Dielectric strength:1500Vrms,winding to winding.

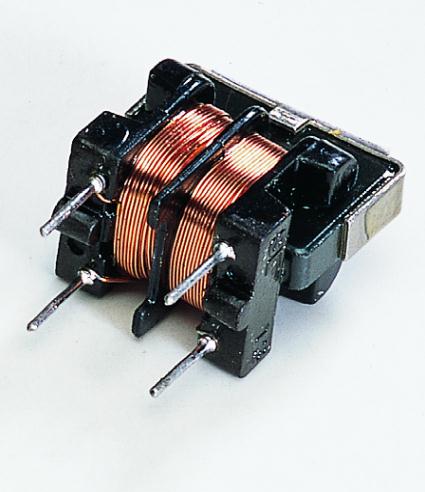

    · UL Class B Compliance Common Mode Chokes.
    · Operating temperature:-55 to +130℃,RoHS & HF compliance.
