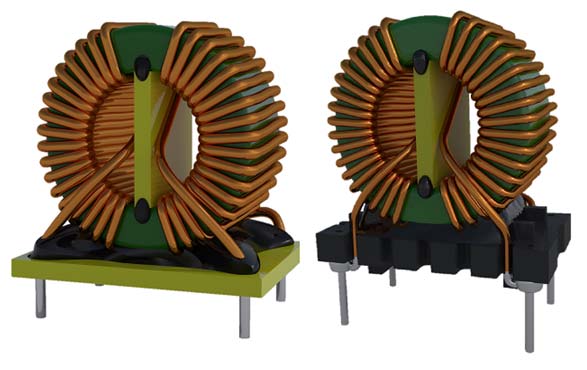

TB25x15x15CD

Feature:

  • • 31.5×23.5mm Max.(L×W),35.0mm Max. Height.

    • Inductance range: 1.0mH~5.0mH,Custom values are welcomed.

    • AC common mode noise filter for Power Supplies and Lighting Application.

    • Rated Voltage: 250VAC. • Dielectric strength: 1500Vrms,winding to winding.

    • UL 94 V-0 Material.

    • Operating temperature: -40 to +125℃.

    • RoHS & HF compliance Components.
