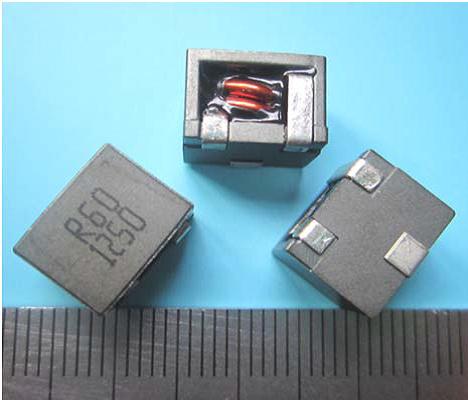

· Ferrite based SMD Inductor with lower core loss.
· Custom values are welcomed.
· High current output chokes, up to 43 Amp with approx. 20% roll off.
· Low Profile 8.0mm Max. height .
· Foot Print 10.8 x 9.2 mm Max.
· Ideal for Buck Converter, VRM & High Density Board Design.
· Operating frequency up to 1 MHz application.
· Operating Temperature Range -55°C to +130°C, RoHs & HF compliance.
· T & R Qtys: 500 pcs,13” Reel.
