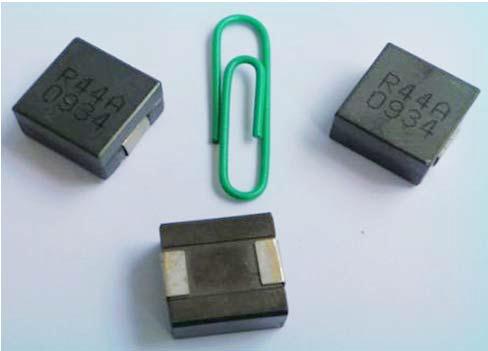

SL5032

Feature:

  • Ferrite based SMD Inductor with lower core loss.
  • Inductance Range:210nH to 440nH. Custom values are welcomed.
  • High current output chokes, upto 71 Amp with max. 20% roll off.
  • Low Profile 8.0mm Max. height .
  • Foot Print 13.3 x 13.0 mm Max.
  • Ideal for Buck Converter, VRM & High Density Board Design.
  • Operating up to 1 MHz application.
  • Operating Temperature Range -55°C to + 130°C.
