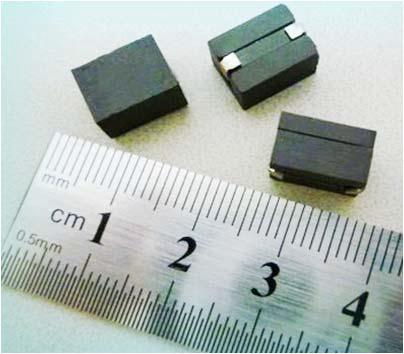

SL4125

Feature:

  • Ferrite based SMD Inductor with lower core loss.
  • Inductance Range:140nH to 300nH. Custom values are welcomed.
  • High current output chokes, upto 70 Amp with max. 20% roll off.
  • Low Profile 6.5mm Max. height .
  • Foot Print 10.41 x 8.0 mm Max.
  • Ideal for Buck Converter, VRM & High Density Board Design.
  • Operating up to 1 MHz application.
  • Operating Temperature Range -55°C to + 130°C, RoHs compliance .
