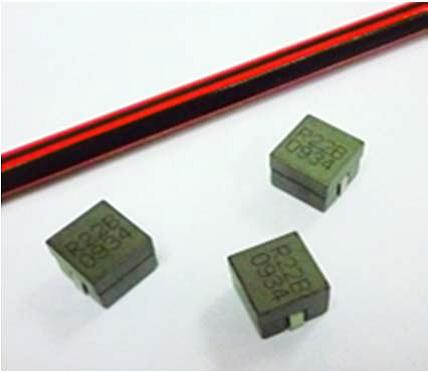

SL4035

Feature:

● Ferrite based SMD Inductor with lower core loss.
● Inductance Range:220nH to 470nH. Custom values are welcomed.
● High current output chokes, upto 68 Amp with max. 20% roll off.
● Low Profile 9.0mm Max. height .
● Foot Print 11.2 x 11.0 mm Max.
● Ideal for Buck Converter, VRM & High Density Board Design.
● Operating up to 1 MHz application.
● Operating Temperature Range -55°C to + 130°C, RoHs compliance .
● T & R Qtys: 300pcs , 13” Reel.
