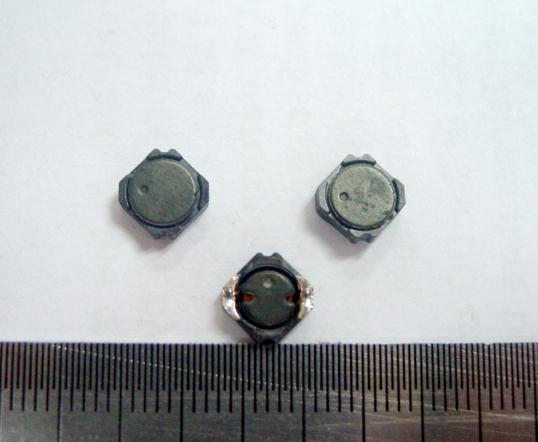

● Ferrite based SMD Inductor with lower core loss.
● Inductance Range:2.4uH to 150uH. Custom values are welcomed.
● High current output chokes, upto 13.0 Amp with max. 35% roll off.
● Foot print 10.3 x 10.3mm Max. Low profile 5.0mm Max. height
● Ideal for LCD driver,DSC/DVC,Notebook PC and High Density Board Design.
● Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
● T & R Qtys: 800 pcs , 13” Reel ;
