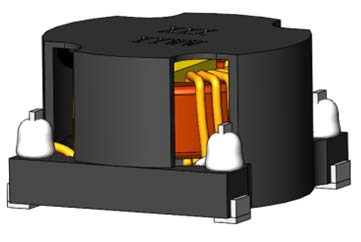

• 18.00 × 18.00mm Max.(L×W),11.50mm Max. Height SMD type Common Mode Chokes.
• Inductance range: 0.70mH~39.0mH,Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR,
Switch Mode Power Supply, Inverter, Industrial Equipment.
attenuation and control unit with better characteristics in low frequency band.
• Rated Voltage: 250Vac.
• Dielectric strength:1500Vrms,winding to winding.
• UL Class B Compliance.
• Operating temperature: -40 to +130℃.RoHS & HF Compliant Components.
• T & R Qtys: 200 pcs, 13” Reel .
